Condom Cellophane Automatic Overwrapping Machine Tear Tape Equipment

  • 1
  • 2

Brand Name : SICI AUTO

Model Number : XQ-SW320

Certification : CE

Place of Origin : Wuxi

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 30 set/month

Delivery Time : 30 work days

Packaging Details : Wooden Case

Name : Condom Box Automatic Overwrapping Machine

Feeding mode : automatic

Speed : 80-130pcs/min

Available box dimension : (50-220) mm × (25-110) mm × (15-60) mm

Sealing type : flat sealing

Film feeding mode : cam feeding

Power : 5kw

Voltage : 220v/380v

Optional : ironing machine, anti-static bar, open door sensor

Application : playing cards, sticky note, lotion

Contact Now

XQ-SW320 Condom Box with Tear Tape Automatic Cellophane Overwrapping Machine

Overwrapping Machine Introduction

The machine is used for test paper, cosmetics, medicines, food, health care products, audio-visual products, stationery, daily necessities and other three-dimensional plastic packaging of the outer cover transparent film (the packaging effect is the same as that of cigarettes). It's widely used for cosmetics, skin care, medicine, commodity, stationery, food industires and so on.

Technical Parameter

Model XQ-SW320
Packing Size (50-220) mm × (25-110) mm × (15-60) mm
Production Capacity 80-130 packs / min
Total Power 5kw
Working Voltage 220V
Air Consumption 5-8L/min
Air Compressure 0.4-Mpa
Machine Weight 500kg
Machine Dimension 2050*850*1600mm
Optional ironing machine, anti-static bar, open door sensor

Machine Principle

Condom Cellophane Automatic Overwrapping Machine Tear Tape Equipment

Overwrapping Machine Features

Model:XQ-SW320 Condom Box with Tear Tape Automatic Cellophane Overwrapping Machine

1 The equipment can adopt PLC control, touch screen man-machine interface operation platform.
2 Fault diagnosis prompt, complete safety protection.

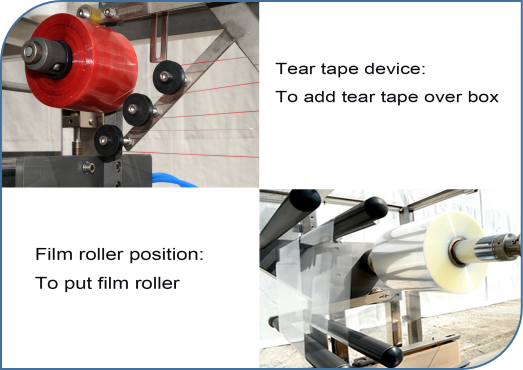

3 The equipment automatically sends and cuts the film, the automatic wrapping, the automatic sealing, the automatic pulling belt, the speed, the length is adjustable continuously, may pack the different specification product.
4 The cylinder and CAM are combined to drive; The electric cabinet and equipment are equipped with lighting.
5 The technical indicators of the whole machine meet the requirements of GMP certification and industry standards.
6 Anti-counterfeiting easy to pull wire.
7

The CAM material is made of high-quality ductile iron and then quenched (the surface hardness is 50-55). The panel and shell are made of 1.5mm thick 304 stainless steel and transported to 304 stainless steel with aluminum alloy. The outer surface is treated with matte.

Condom Cellophane Automatic Overwrapping Machine Tear Tape Equipment

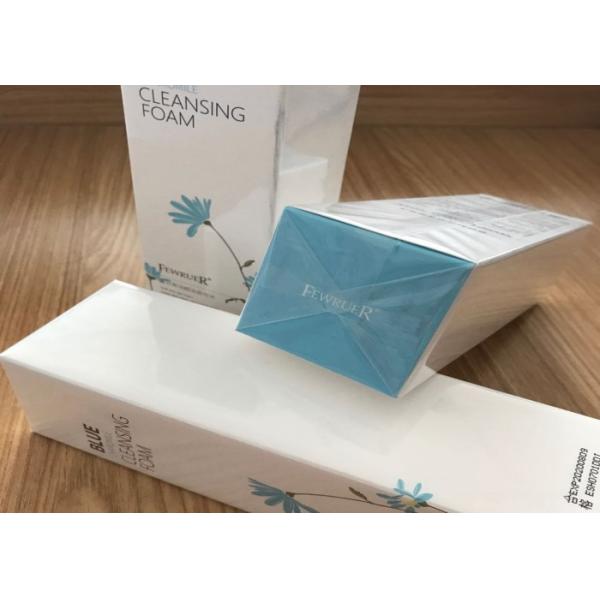

Samples

Condom Cellophane Automatic Overwrapping Machine Tear Tape EquipmentCondom Cellophane Automatic Overwrapping Machine Tear Tape Equipment
